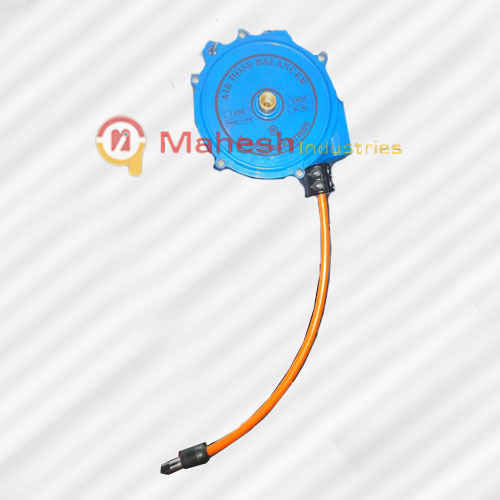

Air Hose Balancers


DESIGN
MAHESH MAKE Air hose tools balancer is to be used with feed back Air tools. The tool Spring balancer provides an air hose and Ratchet mechanism that aloud tool to suspended.

FEATURES

  • Easy and precise balancer tension adjustment.
  • High impact Aluminimum case.
  • Forged steel swivel hook.


Specifications :
MODEL NO HOSE CAPACITY TRAVEL LENGTH WORKING PRESSURE ( L ) ( W ) ( H ) WEIGHT
ID x OD min max
MAHB-1 8 x 12 0.5 Kgs 1 Kgs 1.5 MTRS 10 Kgs/cm2
MAHB-2 8 x 12 1 Kgs 2 Kgs 1.5 MTRS 10 Kgs/cm2
MAHB-3 8 x 12 1 Kgs 3 Kgs 1.5 MTRS 10 Kgs/cm2
MAHB-5 8 x 12 2.5 Kgs 5 Kgs 1.5 MTRS 10 Kgs/cm2
