Spring Balancer (1kg - 300kgs)

SPRING BALANCER SHEET METAL TYPE
Applicable FOR LIGHT WEIGHT

Spring Balancer

Specification :

MODEL NO

CAPACITY

TRAVEL LENGTH

( W )

( L)

( H )

WEIGHT

min

max

MSMSB-1

0.5 Kg

1 Kg

1 MTRS





MSMSB-2

1 Kg

2 Kgs

1 MTRS

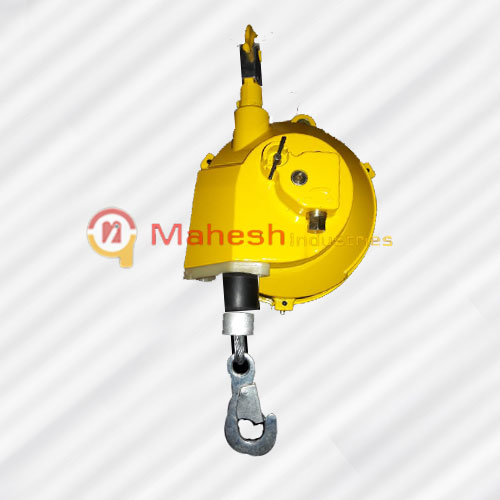

SPRING BALANCERS LIGHT WEIGHT (Open Type)

Spring Balancers Light Weight


Design
MAHESH MAKE  Overhead spring balancer are specially  designed to free the operator from weight of the hand tools. The tools are suspended at one  end of the wire rope wound on drum fitted with a spiral spring. When properly by adjusting Spring  tension, the tools become almost weightless in the hand of an operator. The tools can be move up or down with very effort. By using Spring Balancer the operator can job much faster and more accurately with minimum fatigue.



APPLICATONS

MAHESH MAKE Spring Balancer is a safe and completely reliable means of suspending following..

  • Suspending a tool for product assembly line.
  • Frequent fastening screws, bolts and nuts.
  • Suspending a jig, tool, welding gun etc.
  • Spring balancer improve working efficiency and diminish worker fatigue.
  • Spring balancer make the position of a tool stable and contribute to accurate work.
  • Any eclectic or pneumatic power is not required and safe working is achieved.

Features
  • RUGGED CONSTRUCTION.
  • SELF LUBRICATING BEARING.
  • EXTERNAL DRUM LOCK ARRANGEMENT.
  • SWIVEL HOOK FOR ANY OPERATING ANGLE.
  • QUICK CONNECTING & DISCONNECTING OF LOAD.


(Close Type)

Spring Balancers Close Type

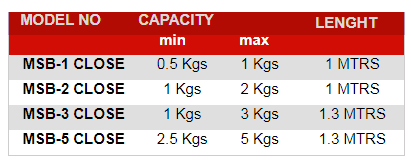

Specification :

MODEL NO

CAPACITY

TRAVEL LENGHT

( L )

( W )

( H )

WEIGHT

min

max

MSB-1 CLOSE

0.5 Kgs

1 Kgs

1 MTRS





MSB-2 CLOSE

1 Kgs

2 Kgs

1 MTRS





MSB-3 CLOSE

1 Kgs

3 Kgs

1.3 MTRS





MSB-5 CLOSE

2.5 Kgs

5 Kgs

1.3 MTRS

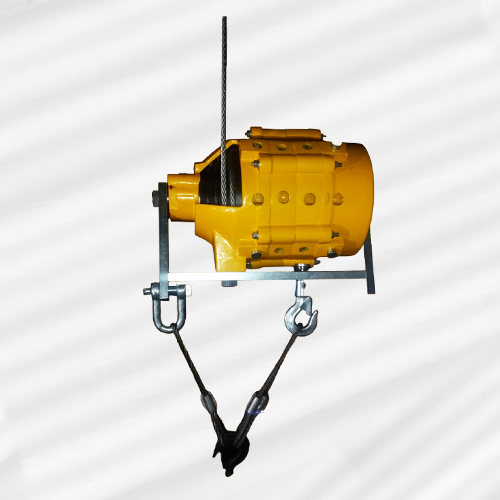

SPRING BALANCERS HEAVY DUTY

Spring Balancers Heavy Duty

MAHESH INDUSTRIES Spring Balancer are specially designed to free operator from weight of the hand tools. The tools are suspended at one end of the wire rope wound on a drum fitted with a spiral spring. When properly balanced by adjusting spring tension, the tools become almost weightless in the hands of an Operator.

The tools can be moved up or down with very little effort.,

Application
MI Spring Balancer is a safe and completely reliable of suspending following:


  • Portable Tools Link Drill Machines, Grinders, Wrenches etc.
  • Portable Welder Guns, Spray Guns, Shot Blast Guns etc.
  • Portable Drifting Attachments in Mines, Queries etc.
  • Portable Jute & Synthetic Bag Closing Machines etc.

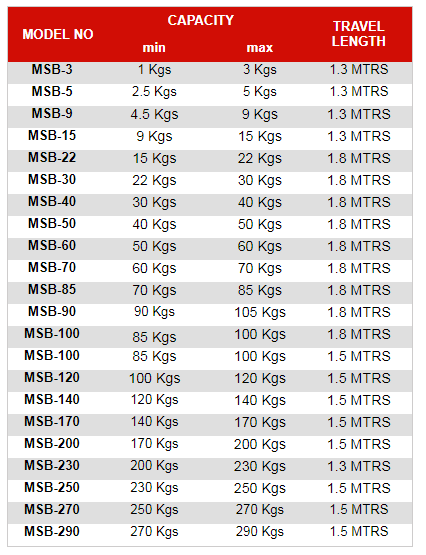

Specification :

MODEL NO

CAPACITY

TRAVEL LENGTH

( W )

( L )

( H )

WEIGHT

min

max

MSB-3 1 Kgs 3 Kgs 1.3 MTRS
MSB-5 2.5 Kgs 5 Kgs 1.3 MTRS

MSB-9

4.5 Kgs

9 Kgs

1.3 MTRS





MSB-15

9 Kgs

15 Kgs

1.3 MTRS





MSB-22

15 Kgs

22 Kgs

1.8 MTRS





MSB-30

22 Kgs

30 Kgs

1.8 MTRS





MSB-40

30 Kgs

40 Kgs

1.8 MTRS





MSB-50

40 Kgs

50 Kgs

1.8 MTRS





MSB-60

50 Kgs

60 Kgs

1.8 MTRS





MSB-70

60 Kgs

70 Kgs

1.8 MTRS





MSB-85 70 Kgs 85 Kgs 1.8 MTRS

MSB-90

90 Kgs

105 Kgs

1.8 MTRS





MSB-100

85 Kgs

100 Kgs

1.8 MTRS





MSB-100

85 Kgs

100 Kgs

1.5 MTRS





MSB-120

100 Kgs

120 Kgs

1.5 MTRS





MSB-140

120 Kgs

140 Kgs

1.5 MTRS





MSB-170

140 Kgs

170 Kgs

1.5 MTRS





MSB-200

170 Kgs

200 Kgs

1.5 MTRS





MSB-230

200 Kgs

230 Kgs

1.3 MTRS





MSB-250

230 Kgs

250 Kgs

1.5 MTRS





MSB-270 250 Kgs 270 Kgs 1.5 MTRS
MSB-290 270 Kgs 290 Kgs 1.5 MTRS

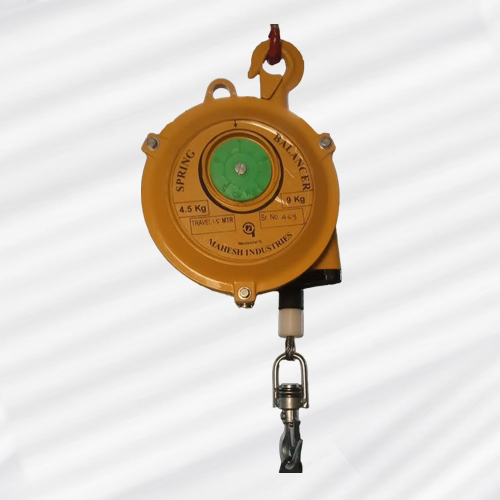

Spring Balancer XL Model




MODEL NO

CAPACITY



TRAVEL LENGTH

Min

Max

MSB-1XL

          0.5 Kg

            1 Kg

2.2 MTRS

MSB-2 XL

          1 Kg

            2 Kgs

2.2 MTRS

MSB-3 XL

          1 Kgs

            3 Kgs

2.2 MTRS / 3 MTRS

MSB-5 XL

          2.5 Kgs

            5 Kgs

2.2 MTRS / 3 MTRS

MSB-9 XL

          4.5 Kgs

            9.0 Kgs

2.2 MTRS / 3 MTRS

MSB-15 XL

          9.0 Kgs

            15 Kgs

2.2 MTRS / 3 MTRS

MSB-22 XL

          15 Kgs

            22 Kgs

2.2 MTRS / 3 MTRS

MSB-30 XL

          22 Kgs

            30 Kgs

2.2 MTRS / 3 MTRS

MSB-40 XL

          30 Kgs

            40 Kgs

2.2 MTRS

MSB-50 XL

          40 Kgs

            50 Kgs

2.2 MTRS

MSB-60 XL

          50 Kgs

            60 Kgs

2.2 MTRS

MSB-70 XL

          60 Kgs

            70 Kgs

2.2 MTRS

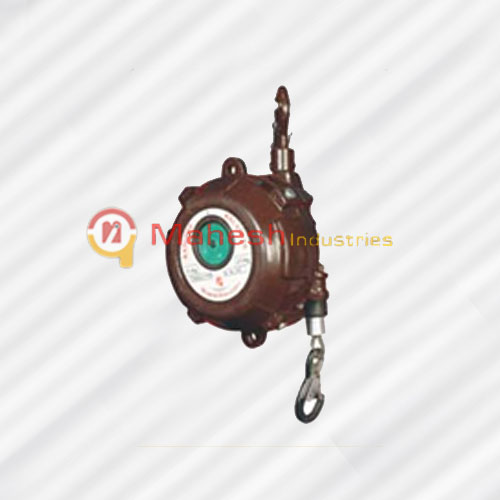

RATCHET SPRING BALANCERS


Ratchet Spring Balancers
DESIGN

‘’MAHESH MAKE’’ Ratchet spring balancer is with ratchet mechanism to stop the wire under no-load condition also attach or detach the easily. The ratchet wheel is the tapered drum and spring case. When the ratchet works by operating lever clutch the wire is at a standstill and when the ratchet is released the wire moves up and down.

APPLICATONS

MAHESH MAKE Ratchet Spring Balancer is a safe and completely reliable means of suspending following..

  • Suspending a tool for product assembly line.
  • Frequent fastening screws, bolts and nuts.
  • Suspending a jig, tool, welding gun etc.
  • Spring balancer improve working efficiency and diminish worker fatigue.
  • Spring balancer make the position of a tool stable and contribute to accurate work.
  • Any eclectic or pneumatic power is not required and safe working is achieved.

FEATURES

  • RUGGED CONSTRUCTION.
  • SELF LUBRICATING BEARING.
  • EXTERNAL DRUM LOCK ARRANGEMENT.
  • RATCHET MECHANISM.
  • SWIVEL HOOK FOR ANY OPERATING ANGLE.
  • QUICK CONNECTING & DISCONNECTING OF LOAD.

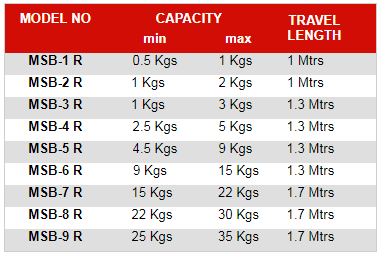

Specification :

MODEL NO

CAPACITY

TRAVEL LENGTH

( W )

( L )

( H )

WEIGHT

min

max

MSB-1 R

0.5 Kgs

1 Kgs

1 Mtrs





MSB-2 R

1 Kgs

2 Kgs

1 Mtrs





MSB-3 R

1 Kgs

3 Kgs

1.3 Mtrs





MSB-4 R

2.5 Kgs

5 Kgs

1.3 Mtrs





MSB-5 R 4.5 Kgs 9 Kgs 1.3 Mtrs
MSB-6 R 9 Kgs 15 Kgs 1.3 Mtrs
MSB-7 R 15 Kgs 22 Kgs 1.7 Mtrs
MSB-8 R 22 Kgs 30 Kgs 1.7 Mtrs
MSB-9 R 25 Kgs 35 Kgs 1.7 Mtrs




Spring Balancer


Spring Balancer

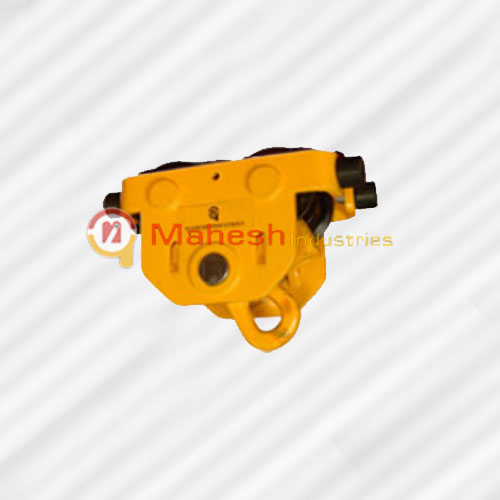

I – BEAM TROLLEYS

“MAHESH MAKE” I-BEAM Trolleys has been designed specially to be used along with Spring Balancers in weld shop of automobiles on standard I- Beam ( 150 X 75 ) or ( 200 X 100 ) or ( 125 X 65 ) for 3 dimensional movement on X-Y-Z axes. These trolleys are made from steel side plates graded cast iron rollers. This trolleys are rugged in construction and comes with good quality rollers bearing, steel shafts and nitrile rubber shock absorbers and power coated for food surface finish. These trolleys are available in 4 models for suspending transformer, Welding Gun and Kick less Cable.


Specification :

MODEL NO

CAPACITY

AVAILABLE BEAMS(MM)

MIOT-1

1000 Kgs

150 x 75

MIOT-2

500 Kgs

150 x 75

MIOT-3

250 Kgs

150 x 75
