Water, Grease, Oil And Petrol Hose Reel

OIL / GREASE / PETROL HOSE REEL

Water Grease

MAHESH INDUSTRIES Hose Reels are the ideal small capacity reel for all Oil, Grease and Water Application.  This rugged sel construction of a reel of industrial quality designed for safety, convenience and productivity.  Contemporary engineering and manufacturing techniques guarantee, trouble free performance and long product life.


Features:

  • Full flow shaft and swivel assure maximum fluid delivery.
  • Bended drive springs give smooth automatic hose retrieval.
  • Multi position guide arms permit wall, floor, ceiling, and under the bench mounting.
  • Pos-I-Latch will maintain the desired working length of hose.  Our mechanism assures a positive latch or unlatches of the hose.
  • Adjustable hose bumpers allow any desired length of hose to be maintained out side the reel.
  • Standard reel finish is red & blue durable, abrasion resistant, baked on power coat finish.


Application:

  • Workshops, Garages
  • Industrial
  • Petrol Pumps
  • Aircraft Maintenance
  • Automotive Service Centers

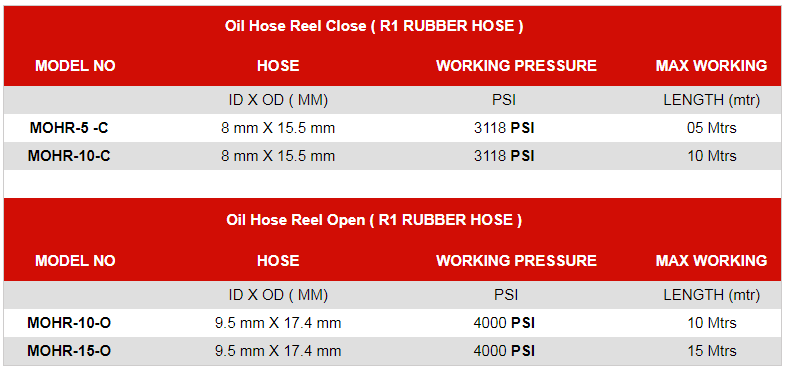

Oil Hose Reel Close ( R1 RUBBER HOSE )



   MODEL NO

HOSE

      WORKING PRESSURE

MAX WORKING



ID X OD ( MM)

PSI

LENGTH (mtr)

MOHR-5 -C

8 mm X 15.5 mm

3118 PSI

05 Mtrs

MOHR-10-C

8 mm X 15.5 mm

3118 PSI

10 Mtrs





Oil Hose Reel Open ( R1 RUBBER HOSE )



   MODEL NO

HOSE

      WORKING PRESSURE

MAX WORKING



ID X OD ( MM)

 PSI

LENGTH (mtr)

MOHR-10-O

9.5 mm X 17.4 mm

4000 PSI

10 Mtrs

MOHR-15-O

9.5 mm X 17.4 mm

4000 PSI

15 Mtrs

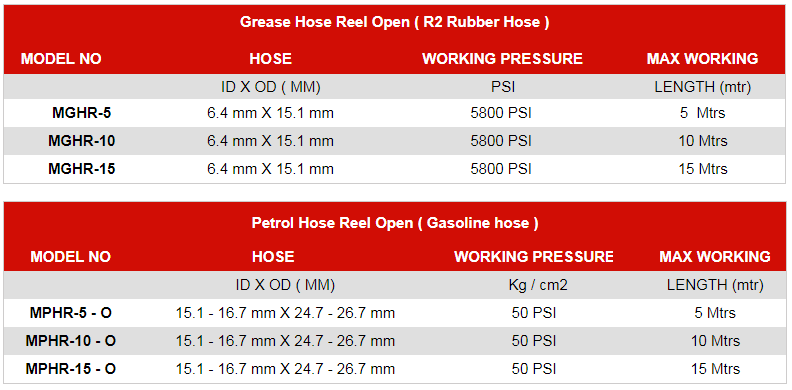

Grease Hose Reel Open ( R2 Rubber Hose )



    MODEL NO

HOSE

      WORKING PRESSURE

MAX WORKING



ID X OD ( MM)

 PSI

LENGTH (mtr)

MGHR-5

6.4 mm X 15.1 mm

5800 PSI

5  Mtrs

MGHR-10

6.4 mm X 15.1 mm

5800 PSI

10 Mtrs

MGHR-15

6.4 mm X 15.1 mm

5800 PSI

15 Mtrs




Petrol Hose Reel Open ( Gasoline hose )



MODEL NO

HOSE

      WORKING PRESSURE

MAX WORKING



ID X OD ( MM)

            Kg / cm2

LENGTH (mtr)

MPHR-5 - O

15.1 - 16.7 mm X 24.7 - 26.7 mm

50 PSI

5 Mtrs

MPHR-10 - O

15.1 - 16.7 mm X 24.7 - 26.7 mm

50 PSI

10 Mtrs

MPHR-15 - O

15.1 - 16.7 mm X 24.7 - 26.7 mm

50 PSI

15 Mtrs




Water Hose Reel Close ( R1 HOSE )



MODEL NO

HOSE

      WORKING PRESSURE

MAX WORKING



ID X OD ( MM)

  PSI

LENGTH (mtr)

MWHR-10 - C

9.5 mm X 17.4 mm

2610 PSI

10 Mtrs

MWHR-15 - C

9.5 mm X 17.4 mm

2610 PSI

15 Mtrs



Water Hose Reel Open ( R1 HOSE )



MODEL NO

              HOSE

      WORKING PRESSURE

MAX WORKING



ID X OD ( MM)

PSI

LENGTH (mtr)

MWHR-10 - O

9.5 mm X 17.4 mm

2610 PSI

10 Mtrs

MWHR-15 - O

9.5 mm X 17.4 mm

2610 PSI

15 Mtrs











Water Hose Reel Nylon Breded



MODEL NO

               HOSE

      WORKING  PRESSURE

MAX WORKING



ID X OD ( MM)

Kg / cm2

LENGTH (mtr)

MWHR-5 - NB

8 mm X 14 mm

20 Kg / cm2

5 Mtrs

MWHR-10 - NB

8 mm X 14 mm

20 Kg / cm2

10 Mtrs

MWHR-15 - NB

8 mm X 14 mm

20 Kg / cm2

15 Mtrs

MWHR-20 - NB

8 mm X 14 mm

20 Kg / cm2

20  Mtrs

MWHR-25 - NB

8 mm X 14 mm

20 Kg / cm2

25 Mtrs
