Air Hose Reels

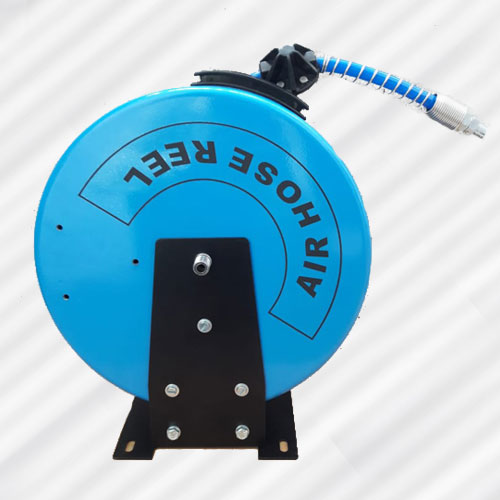

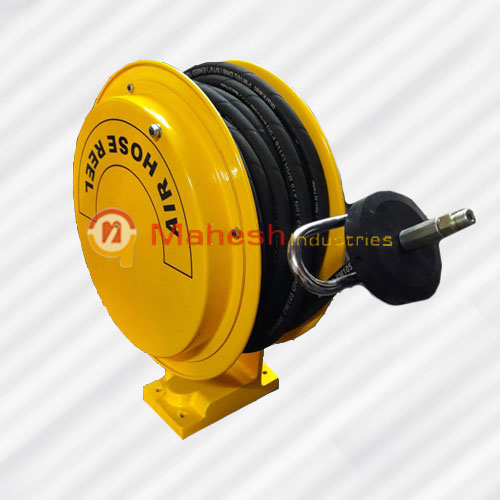

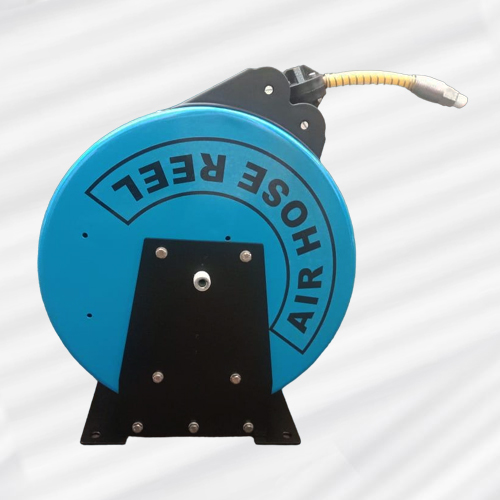

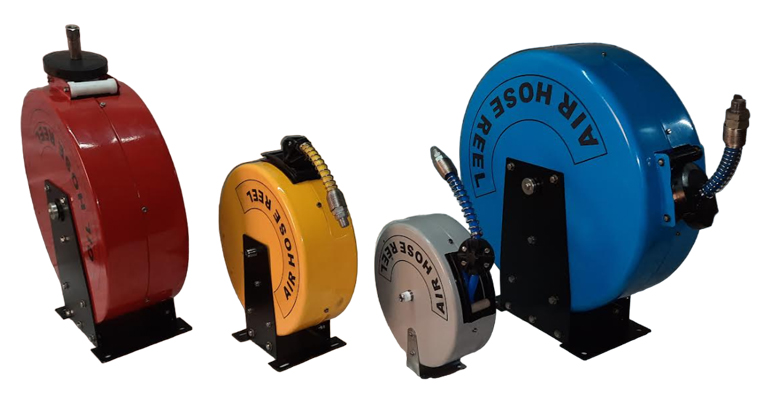

MAHESH MAKE Air hose reel. This enclosed ceiling- or wall-mount air hose reel keeps your air hose organized and protected for longer life. The air hose reel features spring-powered auto rewind and machined fittings for extra durability. The high impact metal steel housing along with powder coating won't dent or rust and the hose reel can be easily mounted to your wall or ceiling.

APPLICATION

MAHESH MAKE The automobile Auto rewind Air hose reel is widely used in industrial and mining enterprises, automobile industry, railway and some special equipment for supplying air. It is provided the function of extending the service life of the hoses, Improving the working environment and increasing the operation efficiency to transmit the energy.

FEATURES

  • Air hose PU Tube.
  • Spring powered auto rewind.
  • High impact metal housing powder coating.
  • Machined fittings.
  • Mounts to wall or ceiling.

COLOR

YELLOW , BLUE , GRAY, RED.

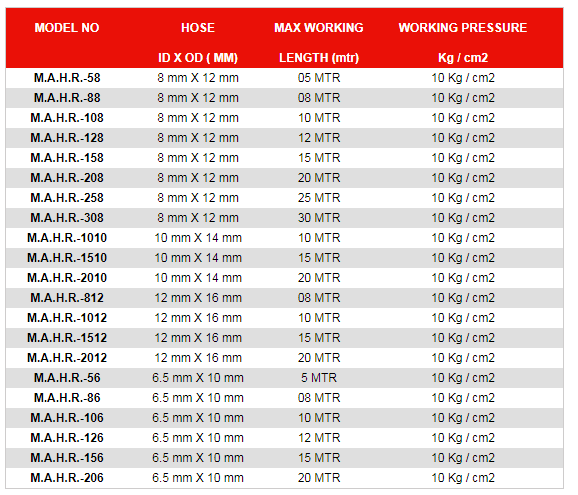

Specifications :

MODEL NO

HOSE

MAX WORKING

WORKING PRESSURE



ID X OD ( MM)

LENGTH (mtr)

            Kg / cm2

M.A.H.R.-58

8 mm X 12 mm

05 MTR

10 Kg / cm2

M.A.H.R.-88

8 mm X 12 mm

08 MTR

10 Kg / cm2

M.A.H.R.-108

8 mm X 12 mm

10 MTR

10 Kg / cm2

M.A.H.R.-128

8 mm X 12 mm

12 MTR

10 Kg / cm2

M.A.H.R.-158

8 mm X 12 mm

15 MTR

10 Kg / cm2

M.A.H.R.-208

8 mm X 12 mm

20 MTR

10 Kg / cm2

M.A.H.R.-258

8 mm X 12 mm

25 MTR

10 Kg / cm2

M.A.H.R.-308

8 mm X 12 mm

30 MTR

10 Kg / cm2

M.A.H.R.-1010

10 mm X 14 mm

10 MTR

10 Kg / cm2

M.A.H.R.-1510

10 mm X 14 mm

15 MTR

10 Kg / cm2

M.A.H.R.-2010

10 mm X 14 mm

20 MTR

10 Kg / cm2

M.A.H.R.-812

12 mm X 16 mm

08 MTR

10 Kg / cm2

M.A.H.R.-1012

12 mm X 16 mm

10 MTR

10 Kg / cm2

M.A.H.R.-1512

12 mm X 16 mm

15 MTR

10 Kg / cm2

M.A.H.R.-2012

12 mm X 16 mm

20 MTR

10 Kg / cm2

M.A.H.R.-56

6.5 mm X 10 mm

5 MTR

10 Kg / cm2

M.A.H.R.-86

6.5 mm X 10 mm

08 MTR

10 Kg / cm2

M.A.H.R.-106

6.5 mm X 10 mm

10 MTR

10 Kg / cm2

M.A.H.R.-126

6.5 mm X 10 mm

12 MTR

10 Kg / cm2

M.A.H.R.-156

6.5 mm X 10 mm

15 MTR

10 Kg / cm2

M.A.H.R.-206

6.5 mm X 10 mm

20 MTR

10 Kg / cm2
